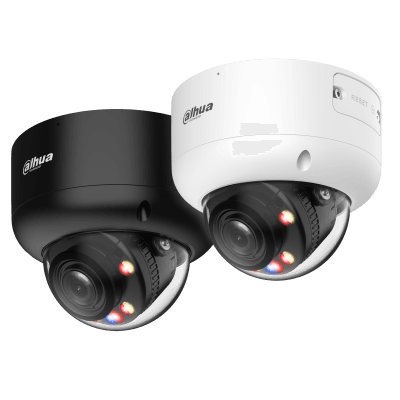

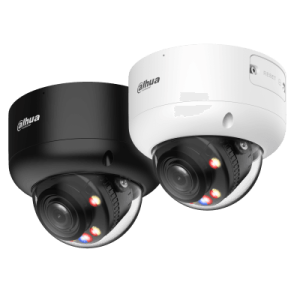

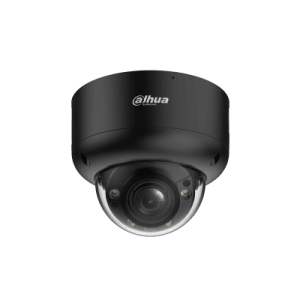

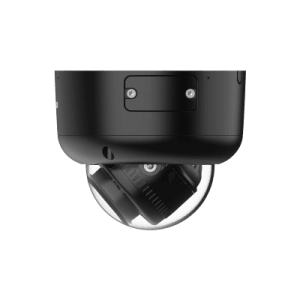

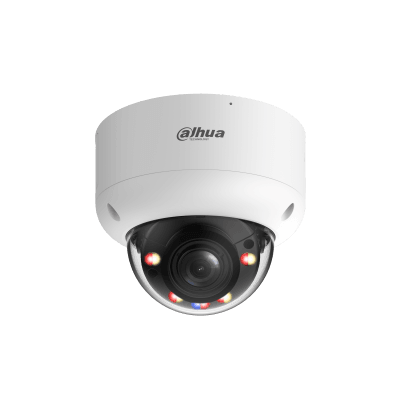

Camera Dahua IPC-HDBW3849R1-ZAS-PV-PRO

1/1.8″ CMOS

3840 (H) × 2160 (V)

Progressive

Auto/Manual 1/3 s–1/100,000 s

0.0006 lux@F1.2 (Color, 30 IRE)

0.0003 lux@F1.2 (B/W, 30 IRE)

0 lux (Illuminator on)

>56 dB

Up to 50 m (164.04 ft) (IR)

Up to 50 m (164.04 ft) (Warm light)

Auto;Manual;Zoomprio

4 (Multi-core (IR + warm) light)

Pan: 0° to 355°

Tilt: 0° to 80°

Rotation: 0° to 355°

Motorized vari-focal

Φ16

2.7 mm–12 mm

F1.2

H: 112°–48°; V: 58°–27°; D: 137°–55°

Fixed

1.75 m (5.74 ft)

( 287.40 ft)

( 114.83 ft)

( 57.41 ft)

( 28.87 ft)

( 612.20 ft)

( 244.75 ft)

( 122.38 ft)

( 61.35 ft)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm.

SMD 4.0

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal and motor vehicles, and search through live and recorded videos to quickly locate targets.

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face exposure; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization duration setting

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

AI H.264; AI H.265

*Includes SmartCodec Technology, Smart H.264+/H.265+

Main stream: 3840 × 2160@(1–25/30 fps)

Sub stream: 1920 × 1080@(1–25/30 fps)

Third stream: 1920 × 1080@(1–25/30 fps)

*The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

3 streams

8M (3840 × 2160); 6M (3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 ×288/352 × 240)

VBR;CBR;ABR

H.264: 3 kbps–16384 kbps;

H.265: 3 kbps–16384 kbps

Auto(ICR)/Color/B/W

Yes

Yes

120 dB

Yes

Auto; natural; street lamp; outdoor; manual; regional custom

Auto/Manual

3D NR

OFF/ON (4 areas, rectangular)

Yes (4 areas)

Electronic Image Stabilization (EIS)

Yes

Yes

Yes

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Yes

8 areas

Yes, built-in dual Mic

Yes, built-in speaker

PCM; G.711a; G.711Mu; G.726; G.723

No SD card; SD card full; SD card error; network disconnection; IP conflict; invalid access; motion detection; video tampering; tripwire; intrusion; loitering detection; stay detection; face detection (full image); scene changing; audio detection; voltage detection; defocus detection; SMD; security exception

RJ-45 (10/100/1000 Base-T)

Yes

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

20 (Total bandwidth: 64 M)

FTP; SFTP; Micro SD card (support max 512 GB); NAS

IE;

Chrome;

Firefox

SmartPSS Lite; DSS; DMSS; DoLynk Care

iOS;Android

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Yes

Yes

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

1 channel (RCA port)

1 channel (RCA port)

1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection

1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC

12 VDC (±30%); PoE+ (802.3at)

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Basic: 4.4 W (12 VDC); 6.1 W (PoE);

Max.: 12.4 W (12 VDC); 16.9 W (PoE) (H.265 + WDR + warm light + sound and light active deterrence + intelligence on)

–30 °C to +60 °C (–22 °F to +140 °F)

≤95% (RH), non-condensing

–40 °C to +60 °C (–40 °F to +140 °F)

≤95% (RH), non-condensing

IP67; IK10

Basic Protection

*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Metal

105.0 mm × Φ126.0 mm (4.13″ × Φ4.96″)

0.75 kg (1.65 lb)

0.99 kg (2.18 lb)
